公网服务器装虚拟之端口映射软件 PortTunnel

PortTunnel是一款简单易用的端口映射软件,他不仅可以自动产生LOG记录,还可以调整您网络的状况。下文就为大家介绍一下PortTunnel的安装及使用配置方法,读完之后你会发现其实它的配置非常简单。

软件简介:

PortTunnel是一个TCP/IP的port redirector /端口映射软件,它可自动产生log记录,也可以调整你的网络状况。

一、PortTunnel的安装与注册:

1、下载软件,软件下载地址:http://soft.huweishen.com/soft/78.html

2、下载完成后,解压到任意文件夹,点击“PortTunnel_ENG.msi”即可开始我们的安装操作:

公网服务器装虚拟之端口映射软件 PortTunnel插图

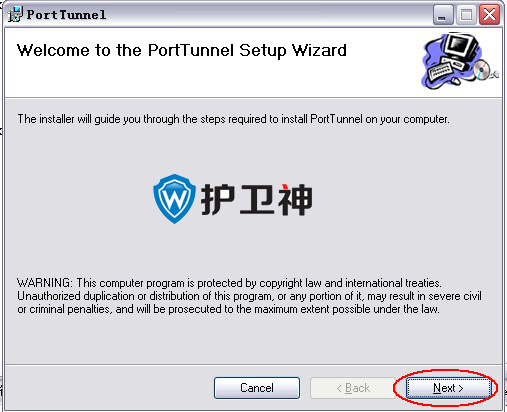

图一:安装向导启动

公网服务器装虚拟之端口映射软件 PortTunnel插图(1)

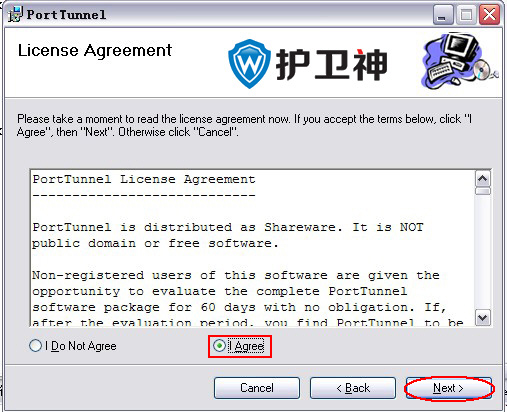

图二:同意许可协议
公网服务器装虚拟之端口映射软件 PortTunnel插图(2)

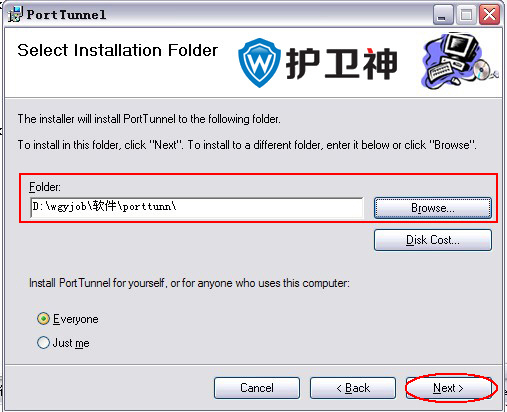

图三:选择程序安装位置
公网服务器装虚拟之端口映射软件 PortTunnel插图(3)

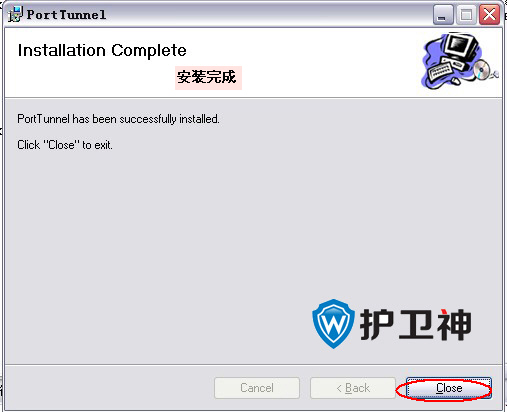

    图四:安装完成

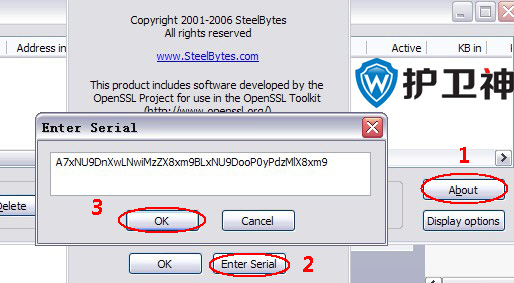

3、安装成功之后,启动软件,一次点击【About】—【Enter Serial】,然后在弹出的新窗口中输入“A7xNU9DnXwLNwiMzZX8xm9BLxNU9DooP0yPdzMlX8xm9”注册码,点击确定就注册成功了。

公网服务器装虚拟之端口映射软件 PortTunnel插图(4)
 图五:注册流程

二、PortTunnel的使用配置说明:

PS:PortTunnel原理是将您内网的IP映射成公网IP,这样就方便用户在Internet上在地址栏输入ip+端口,或者域名就可直接访问您的网站或者ftp服务器等等。他可以映射很多服务,小编在这就向大家介绍一下几种常见的服务器:

1、HTTP(超文本传输协议)如果您想要你的网站被用户浏览到,就需要这个服务。

2、FTP(文件传输协议)如果你想提供文件让用户可以上传下载文件的话,就需要这个服务。

3、SMTP(简单右键传输协议)如果你想向用户提供发送邮件功能,不包括接收右键功能,就需要这个服务

下面就为大家简单介绍一下如果要做HTTP、FTP端口映射,PortTunnel应该做些什么配置:

    1、HTTP端口映射的使用配置

1)增加一个工作站。点击软件下方的【Add】按钮,点击【Main】选项卡进行一些常规的配置。

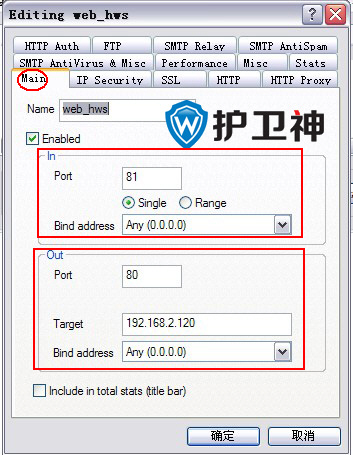

2)配置<Main>选项卡:Name一项可以随便填写,但是最好能标识这是映射的HTTP端口。输入“In”Port端口号最好不要填写80端口,以免和内网中其他开启了80端口的服务器起冲突,如果确定内网中没有开启80端口的话,也可以填写80端口。下面有两个单选按钮,我们保持【Single】不变,【single】表明只为该工作站分配一个HTTP端口,而【Range】表示可以设置一组端口,即我们可以设置多个连续的端口值。输出“Out”Port端口号填入80端口,则表明内网中的HTTP服务器端口为80端口,这个可以根据时间情况更改。在【Target】即为被映射IP,也就是内网中将要被映射的IP,根据您的需要填写。在In和Out选项里面都有【Bind address】即为捆绑地址,我们一般保持Arry(0,0,0)不变即表明内网服务器使用动态的公网IP地址;如果内网服务器使用静态的公网IP地址,则只需要在此处列表中选择相应IP地址即可。

公网服务器装虚拟之端口映射软件 PortTunnel插图(5)
图六:配置Main选项卡

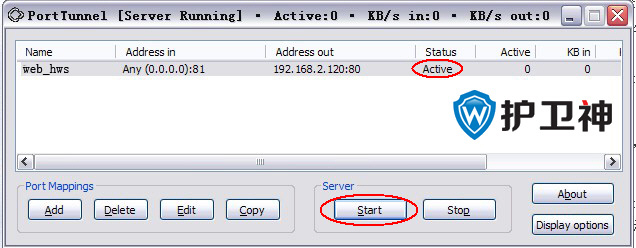

3) 配置完成后,点击确定按钮回到主界面,您将会看到多了您刚才配置的工作站,点击软件“Server”块中的【Start】按钮即可启动服务了。

公网服务器装虚拟之端口映射软件 PortTunnel插图(6)
  图八:启动HTTP工作站
